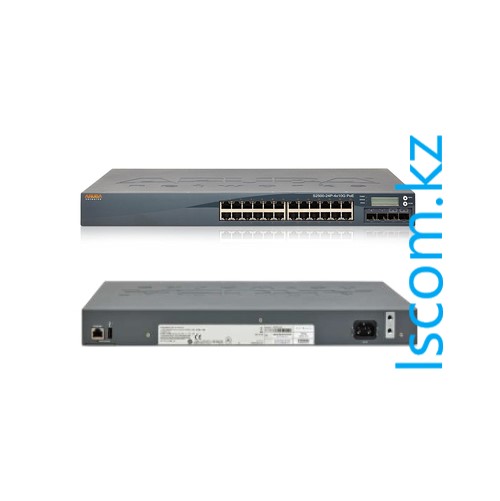

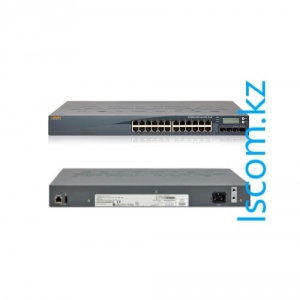

S2500-24P Коммутатор S2500-24P Mobility Access Switch

Device Type

Switch - 24 ports - L3 - managed - stackable

Enclosure Type

Desktop

Interfaces

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE) + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+

Power Over Ethernet (PoE)

PoE

Performance

Switching throughput : 128 Gbps

Capacity

Virtual interfaces (VLANs) : 4094 Maximum number of instances : 64 Routing table entries : 8000

MAC Address Table Size

12K entries

Jumbo Frame Support

9216

Max Units In A Stack

8

Routing Protocol

OSPF, IGMPv2, IGMP, PIM-SM, static IP routing

Remote Management Protocol

SNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2

Encryption Algorithm

MD5

Authentication Method

RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Features

Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, MAC address filtering, Broadcast Storm Control, IPv6 support, Low-latency queuing (LLQ), Spanning Tree Protocol (STP) support, PIM-SM snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, static IP mode, DHCP proxy, Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+), LLDP support, DHCP relay, dynamic IP mode, DHCP client, loop prevention, NTP time synchronization

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Built-in Devices

Status LCD

Expansion / Connectivity

Interfaces

24 x 1000Base-T - RJ-45 - PoE 4 x 10Gb Ethernet / 1Gb Ethernet - SFP+ 1 x serial (RS-232) - DB-9 - management 1 x 1000Base-T - RJ-45 - management

Power

Power Device

Internal power supply

Miscellaneous

Cables Included

1 x network cable - 1.6 ft

Compliant Standards

FCC Class A certified, TUV GS, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1

Localization

United States

Dimensions & Weight

Approximate Width

17.5 in

Approximate Depth

12 in

Approximate Height

1.7 in

Approximate Weight

12.1 lbs

Manufacturer Warranty

Service & Support

Limited lifetime warranty

Service & Support Details

Limited warranty - replacement - lifetime - pick-up and return - response time: next business day Technical support - 90 days

Environmental Parameters

Min Operating Temperature

32

Max Operating Temperature

122

Humidity Range Operating

5 - 95% (non-condensing)

Min Storage Temperature

40

Max Storage Temperature

158

Humidity Range Storage

5 - 95% (non-condensing)
